Churchill Falls Switchyard Program

Location of Project  Churchill Falls, Newfoundland, Canada Project Complete Year  On-going (7+ Year Program) Project Scope This is a yearly program for the removal, installation, and commissioning of various equipment…
Location of Project  Churchill Falls, Newfoundland, Canada
Project Complete Year  On-going (7+ Year Program)
Project Scope

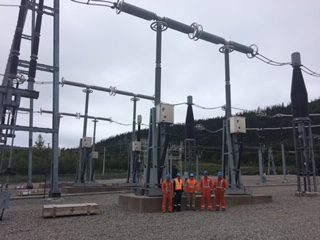

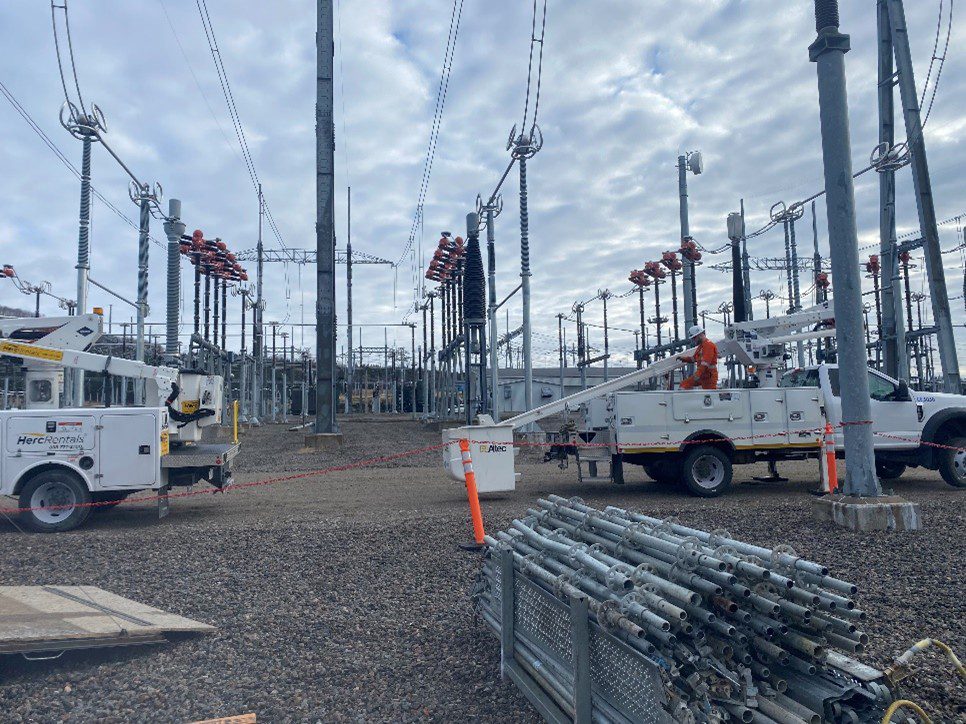

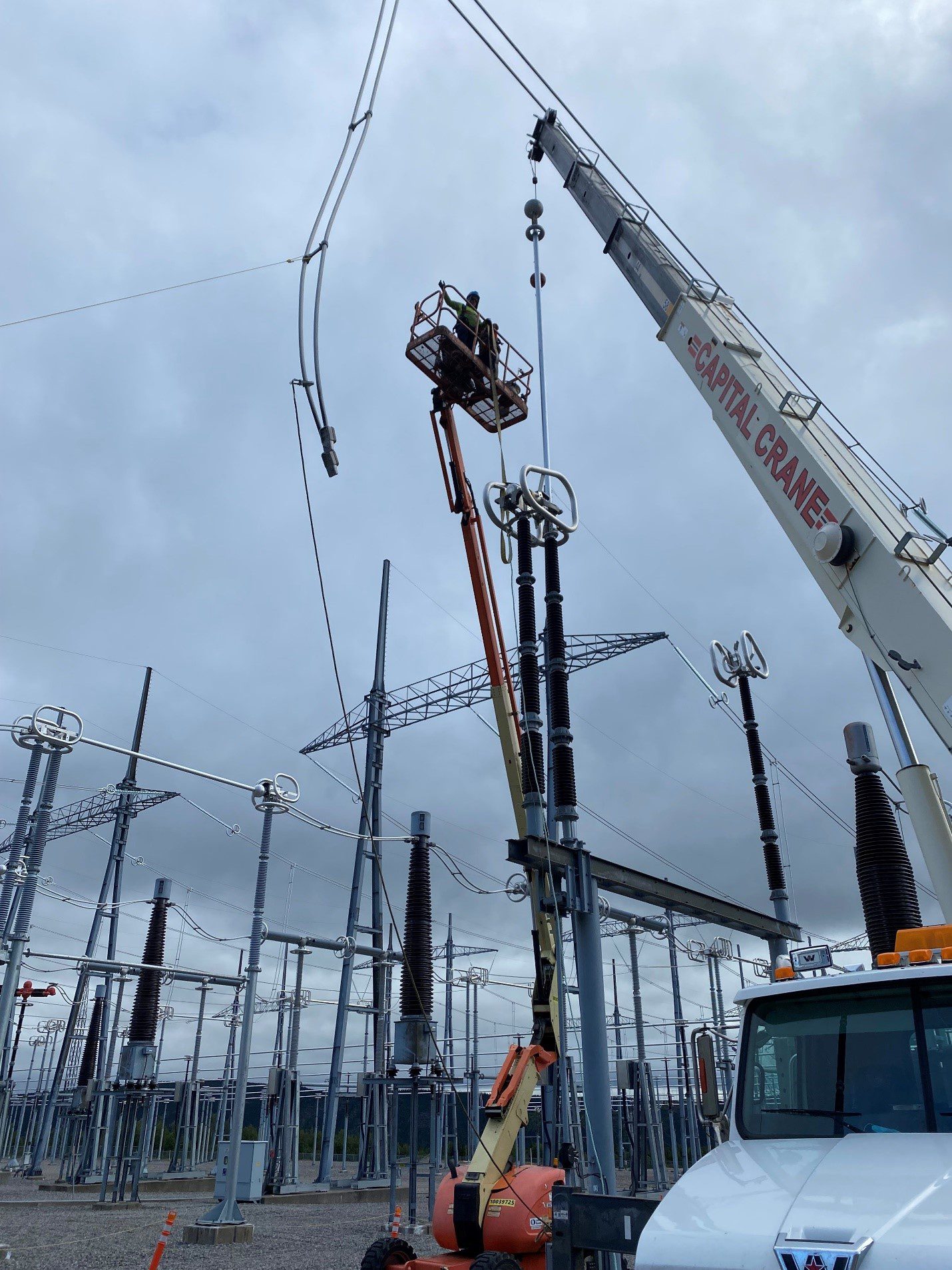

This is a yearly program for the removal, installation, and commissioning of various equipment upgrades at the Churchill Falls Power Station – Switchyard. With equipment up to 735kV, this program includes (but is not limited to): 735kV Disconnects, 230kV Disconnects, 735kV Current Transformers with Potential Transformers, 735kV Current Transformers, 735kV Capacitive Voltage Transformers, 735kV Surge Arrestors, 230kV Current Transformers with Potential Transformers, 230kV Current Transformers, etc. Additionally, existing 13.8kV cables were required to be direct buried, and 13.8kV cabling was replaced. As part of this program, scopes were executed as per our Master Service Agreement (MSO).

Rising Edge’s Scope of Work

Rising Edge was and continues to be responsible for the execution of the removal, installation, upgrade, and commissioning of various HV equipment for multiple years under an MSO.

Voltage 735kV
Service / Tags
  • Utility
  • Commissioning
  • Construction
